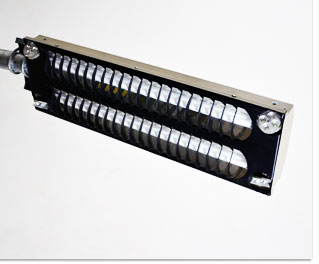

ACON HYBRID Street Light PST



Hybrid Street LightHybrid Street LightHybrid Street Light

Presenting the World's first range of Hybrid Street Lights – LED + T5 – A Low Cost Innovative Solution!

Sleek & Stylish, these models come with incredible energy efficiency and at the same time a powerful light throw all along the road. Revved with many power-packed features, ACON Hybrid Models are the right choice for ECO-friendly lighting.

We have taken a simple looking product like a Street Light to a great height of technology. This has been achieved by a combination of several design parameters. These models are designed using latest engineering & computerized techniques and further analyzed and tested at a very high tech state of the art validation center – one of its kind in the world!

The ACON HYBRID Street Light Model is set to revolutionize the lighting industry by eliminating all the disadvantages of T5 & LED, if used individually. Comprises of both LED & T5 which are complimentary to each other.

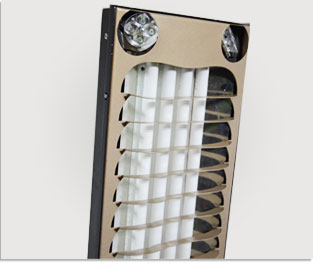

T5 + Reflector used in the HYBRID Model shall give enough downward light output below the pole where as...LEDs in combination with lenses shall eliminate the dark spot at the centre between the two consecutive light poles thereby increasing the Uniformity Factor

Substitute for 70/125/150/250W HPSV, Mercury & Metal Halide.

Download HYBRID Presentation

Models
Model Consumption Dimension (lxbxh)
in mm
ACON 40W HYBRID 30W T5 + 10W LED = 40W 685 x 185 x 102
ACON 60W HYBRID 30W T5 + 30W LED = 60W 685 x 185 x 102
ACON 90W HYBRID 60W T5 + 30W LED = 90W 800 x 380 x 150
  • Features
    • Bright, uniform, cool & pleasant light output
      Best Visual Clarity & Precision
    • High Energy Saving – 65- 80%
      Highly Energy Efficient
    • Low Product Cost
      Low Capital Investment
    • Low Cable Cost & Capacity Generation Cost
      Very Cost Effective
    • Faster Payback
      Economic Lighting Solution
    • Life – More than 5 years
      Long Life, Better Productivity & Efficiency
    • 2 YEARS GUARANTEE (Including Lamps – Both LEDs & T5)
      Zero Maintenance
  • Energy Cost Comparison - 150W HPSV vs ACON HYBRID Street Light

    • Conventional Sodium/Mercury/Metal Halide Vs ACON HYBRID Street Light PST

    • Parameter ACON HYBRID Street Light PST Conventional HPSV / HPMV / MH
      Voltage Range 165 – 270 VAC 200 – 240 VAC
      Consumption 1/5th of HPMV, 1/4th of MH,  1/3rd of HPSV Very High
      Saving 65 – 80% 0%
      Power Factor > 0.95 0.60
      Eye Pupil Ratio Good Poor
      Lumen Maintenance 90% 50%
      Maintenance Cost ZERO High due to Igniter, Starter, Lamp & Labour
      Life More than 5 Years 6 Months
      Guarantee 2 YEARS on the complete system No Guarantee
    • Energy Consumption of 150W HPSV in 2 years Energy Consumption of ACON 40W HYBRID in 2 years Energy Consumption of ACON 60W HYBRID in 2 years
      180W x 12 Hours x 30 Days x 24 Months / 1000 40W x 12 Hours x 30 Days x 24 Months / 1000 60W x 12 Hours x 30 Days x  24 Months / 1000
      = 1555 units x 5.50 per unit = 346 units x 5.50 per unit = 518 units x 5.50 per unit
      = 8,550/- = 1,903 = 2,850/-
      Total Energy Cost Saving by ACON HYBRID PST 8,550 – 1,903 8,550 – 2,850
        6,647/- 5,700/-
      + Additional Saving due to reduction in cabling cost & Low Capacity Generation
      + Additional Saving due to ZERO Maintenance (Lamp, Igniter, Starter & Labour)
  • Technical Specifications
    • Parameter Technical Specifications
      LEDs Used American Power LEDs
      Reflector Imported Aluminum Anodized Reflector (Special Design)
      Lenses Specially matched composite or individual lens for each LED
      Input Voltage 165-270 VAC, 50 Hz
      THD (Harmonics) < 15 %
      Power Factor > 0.98
      Uniformity Factor > 0.5
      Downward Lux 10 to 30 (Depending on the Model)
      Life of the Complete System More than 5 years
      Life of Lamps > 20000 hours for T5 lamps, > 70000 hours for LEDs
      Guarantee 2 YEARS on the complete system (including lamps)
  • Application
    • Major City Roads
    • Highways & Expressways
    • Bridges & Flyovers
    • Junctions & Roundabouts
    • Industrial Areas
    • Parks & Gardens
