Industrial Lighting

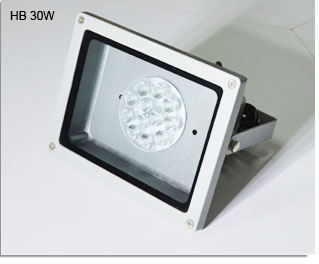

ACON HIGH BAY / MIDBAY / LOWBAY Luminaries
To make the lighting special, we first commit to understand the space.
Lighting is one of the most critical factor for an industrial space. The ACON LED Highbay & Midbay Luminaries are designed for high-performance, energy efficient and long lasting large-area LED lighting which enhances maximum energy saving and at the same time delivers maximum light output.
The ACON LED Industrial Highbay & Midbay Fixtures consume nearly half the energy as compared to other LED Fixtures and deliver not just cool white light but clean white light with outstanding visibility.
ACON Low Bay Light Fixtures are ideal for general purpose table lighting in areas such as warehouse facilities, assembly areas, gyms, hangars, transportation garages, loading and staging areas.
Conserve energy up to 90% with zero maintenance cost.
| Lamp* | Substitute for | Energy Saving | Rated Life Hours |
|---|---|---|---|
| 10W LED HB | 36W / 70W | 82% / 88% | 107,000 |
| 20W LED HB | 70W | 76% | 107,000 |
| 30W LED HB | 150W | 83% | 107,000 |
| 45W LED HB | 150W | 75% | 107,000 |
| 60W LED HB | 250W | 80% | 107,000 |
| 60WX2 LED HB | 400W | 75% | 107,000 |
| *Standard wattages. Customized wattages also available. Kindly contact Factory. | |||
- Features
- Up to 90% Energy Saving
Highly Energy Efficient - Specially matched Composite lens for LEDs
Optimum Spread & focus of Light - Covers a vast area
Few Fixtures required - Over 107,000 hours of optimal operational life
Long Life, No Maintenance - No Mercury or other Heavy Metals
Eco-Friendly Luminaire - Great Visual Efficiency
Best Clarity & Precision - Long Life Guaranteed
Zero Maintenance
- Up to 90% Energy Saving
- Technical Specifications
-
Parameter ACON Industrial LED Advantages Operating Voltage 230 VAC, 50 Hz Total Circuit Power 10W – 120W Highly Energy Efficient LEDs American/European Power LEDs More Light & Life LED Driver circuit Constant current type Long Life of LEDs Durable Voltage Range 100-280 VAC Most Durable Constant Current driver efficiency 90% Highly Efficient Casing Aluminum die cast body with toughened glass cover Efficient Heat Dissipation which leads to longer life of LEDs Photometry Axial pattern Powerful Light Throw in all directions Lens Suitable optics for Large Area Lighting Power factor > 0.98 As per Indian & International Standards Harmonics (THD) < 10 % As per Indian & International Standards Life > 107,000 Hours Long Life, No Maintenance
-
- Application
- Heavy Engineering Industries
- Godowns
- Malls, Hypermarkets & Superstores
- Railway Yards
- Factories & Industries
- Warehouses
